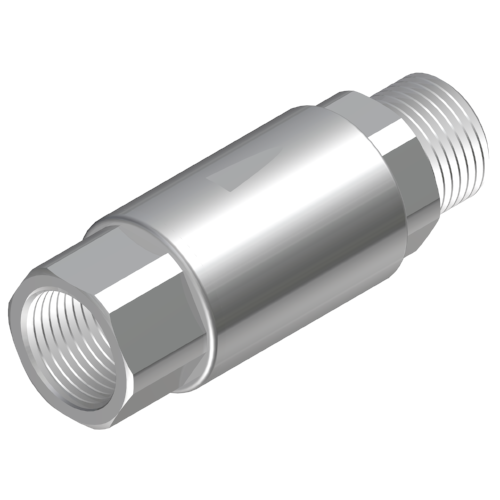

CVX22
Valvola unidirezionale PN40 GAS/NPT
Check valve PN40 GAS/NPT
 | DISEGNO DIMENSIONALE / DIMENSIONAL DRAWING |
| SCHEDA TECNICA / DATA SHEET |
| FM GAS - FKM - P min. 0,25 bar | |||
| Codice / Code | DN | Size | 3D |
| CVX22 B1B1 BV | 7 | 1/8" | .STEP |
| CVX22 B2B2 BV | 9 | 1/4" | .STEP |
| CVX22 B3B3 BV | 12 | 3/8" | .STEP |
| CVX22 B4B4 BV | 12 | 1/2" | .STEP |
| CVX22 B5B5 BV | 15 | 3/4" | .STEP |
| CVX22 B6B6 BV | 20 | 1" | .STEP |
| FM NPT - FKM - P min. 0,25 bar | |||
| Codice / Code | DN | Size | 3D |
| CVX22 N1N1 BV | 7 | 1/8" | .STEP |
| CVX22 N2N2 BV | 9 | 1/4" | .STEP |
| CVX22 N3N3 BV | 12 | 3/8" | .STEP |
| CVX22 N4N4 BV | 12 | 1/2" | .STEP |
| CVX22 N5N5 BV | 15 | 3/4" | .STEP |
| CVX22 N6N6 BV | 20 | 1" | .STEP |
