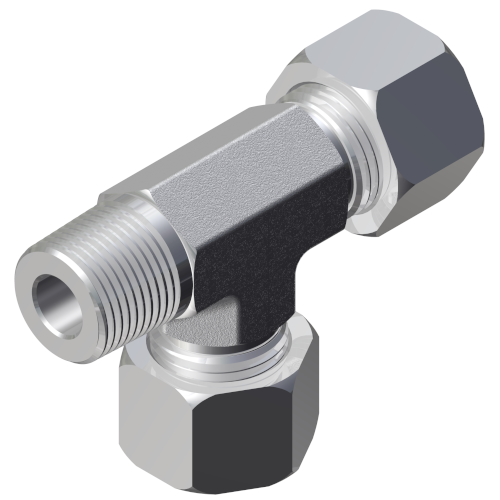

DXH34
Terminale a "T" laterale BSPT / NPT
Lateral "T" adaptor BSPT / NPT
 | DISEGNO DIMENSIONALE BSPT / BSPT DIMENSIONAL DRAWING |
| DISEGNO DIMENSIONALE NPT / NPT DIMENSIONAL DRAWING |
| SCHEDA TECNICA / DATA SHEET |
| M BSPT | |||
| Codice / Code | Tube | Size | 3D |
| DXH34L0006 B1 | 6 | 1/8" | .STEP |
| DXH34L0008 B2 | 8 | 1/4" | .STEP |
| DXH34L0010 B2 | 10 | 1/4" | .STEP |
| DXH34L0012 B3 | 12 | 3/8" | .STEP |
| DXH34L0015 B4 | 15 | 1/2" | .STEP |
| M NPT | |||
| Codice / Code | Tube | Size | 3D |
| DXH34L0006 N1 | 6 | 1/8" | .STEP |
| DXH34L0008 N2 | 8 | 1/4" | .STEP |
| DXH34L0010 N2 | 10 | 1/4" | .STEP |
| DXH34L0012 N3 | 12 | 3/8" | .STEP |
| DXH34L0015 N4 | 15 | 1/2" | .STEP |
