DXH31

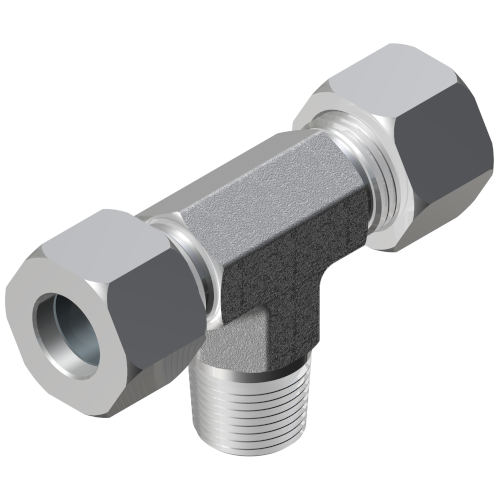

Terminale a "T" centrale BSPT / NPT
Central "T" adaptor BSPT / NPT

DISEGNO DIMENSIONALE BSPT / BSPT DIMENSIONAL DRAWING
DISEGNO DIMENSIONALE NPT / NPT DIMENSIONAL DRAWING
SCHEDA TECNICA / DATA SHEET

Category:
M BSPT
Codice / CodeTubeSize
DXH31L0006 B161/8"
DXH31L0008 B281/4"
DXH31L0010 B2101/4"
DXH31L0012 B3123/8"
DXH31L0015 B4151/2"
M NPT
Codice / CodeTubeSize3D
DXH31L0006 N161/8".STEP
DXH31L0008 N281/4".STEP
DXH31L0010 N2101/4".STEP
DXH31L0012 N3123/8".STEP
DXH31L0015 N4151/2".STEP
