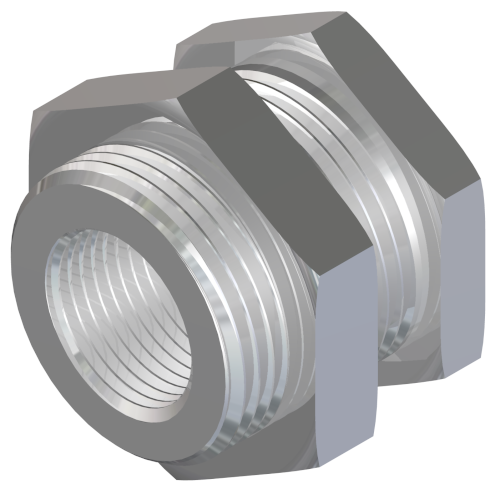

BXH22
Passaparete GAS / NPT
Bulkhead GAS / NPT
 | DISEGNO DIMENSIONALE / DIMENSIONAL DRAWING |
| SCHEDA TECNICA / DATA SHEET |
| FF GAS | ||
| Codice / Code | Size | 3D |
| BXH22 B1B1 00 | 1/8" | .STEP |
| BXH22 B2B2 00 | 1/4" | .STEP |
| BXH22 B3B3 00 | 3/8" | .STEP |
| BXH22 B4B4 00 | 1/2" | .STEP |
| BXH22 B5B5 00 | 3/4" | .STEP |
| BXH22 B6B6 00 | 1" | .STEP |
| FF NPT | ||
| Codice / Code | Size | 3D |
| BXH22 N1N1 00 | 1/8" | .STEP |
| BXH22 N2N2 00 | 1/4" | .STEP |
| BXH22 N3N3 00 | 3/8" | .STEP |
| BXH22 N4N4 00 | 1/2" | .STEP |
| BXH22 N5N5 00 | 3/4" | .STEP |
| BXH22 N6N6 00 | 1" | .STEP |
