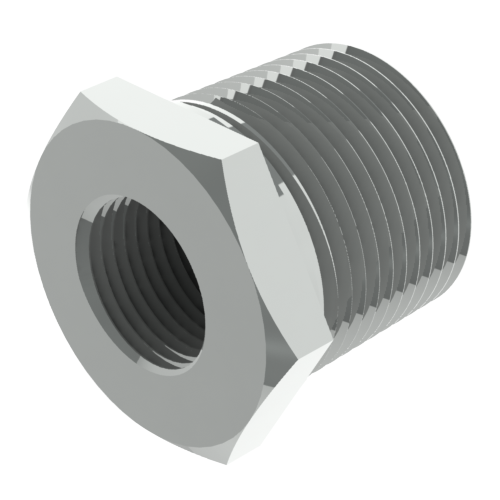

BXH07
Riduzione BSPT - GAS - NPT
Reducer BSPT - GAS - NPT
 | DISEGNO DIMENSIONALE / DIMENSIONAL DRAWING |
| SCHEDA TECNICA / DATA SHEET |
| MF BSPT - GAS | |||
| Codice / Code | Size | Size | 3D |
| BXH07 B1M5 00 | 1/8" | M5 | .STEP |
| BXH07 B2B1 00 | 1/4" | 1/8" | .STEP |
| BXH07 B3B1 00 | 3/8" | 1/8" | .STEP |
| BXH07 B3B2 00 | 3/8" | 1/4" | .STEP |
| BXH07 B4B2 00 | 1/2" | 1/4" | .STEP |
| BXH07 B4B3 00 | 1/2" | 3/8" | .STEP |
| BXH07 B5B4 00 | 3/4" | 1/2" | .STEP |
| MF NPT | |||
| Codice / Code | Size | Size | 3D |
| BXH07 N2N1 00 | 1/4" | 1/8" | .STEP |
| BXH07 N3N1 00 | 3/8" | 1/8" | .STEP |
| BXH07 N3N2 00 | 3/8" | 1/4" | .STEP |
| BXH07 N4N2 00 | 1/2" | 1/4" | .STEP |
| BXH07 N4N3 00 | 1/2" | 3/8" | .STEP |
| BXH07 N5N4 00 | 3/4" | 1/2" | .STEP |
