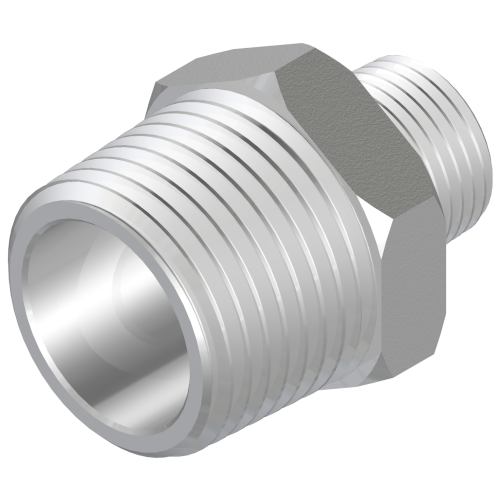

AXH01
Nipplo pari e ridotto BSPT
Straight male equal and unequal BSPT
 | DISEGNO DIMENSIONALE / DIMENSIONAL DRAWING |
| SCHEDA TECNICA / DATA SHEET |
| MM BSPT | |||
| Codice / Code | Size | Size | 3D |
| AXH01 B1B1 00 | 1/8" | - | .STEP |
| AXH01 B2B2 00 | 1/4" | - | .STEP |
| AXH01 B3B3 00 | 3/8" | - | .STEP |
| AXH01 B4B4 00 | 1/2" | - | .STEP |
| AXH01 B5B5 00 | 3/4" | - | .STEP |
| AXH01 B6B6 00 | 1" | - | .STEP |
| AXH01 B7B7 00 | 1" 1/4 | - | .STEP |
| AXH01 B8B8 00 | 1" 1/2 | - | .STEP |
| AXH01 B9B9 00 | 2" | - | .STEP |
| AXH01 B1B2 00 | 1/8" | 1/4" | .STEP |
| AXH01 B1B3 00 | 1/8" | 3/8" | .STEP |
| AXH01 B2B3 00 | 1/4" | 3/8" | .STEP |
| AXH01 B2B4 00 | 1/4" | 1/2" | .STEP |
| AXH01 B2B5 00 | 1/4" | 3/4" | .STEP |
| AXH01 B3B4 00 | 3/8" | 1/2" | .STEP |
| AXH01 B3B5 00 | 3/8" | 3/4" | .STEP |
| AXH01 B4B5 00 | 1/2" | 3/4" | .STEP |
| AXH01 B4B6 00 | 1/2" | 1" | .STEP |
| AXH01 B5B6 00 | 3/4" | 1" | .STEP |
| AXH01 B5B7 00 | 3/4" | 1" 1/4 | .STEP |
| AXH01 B6B7 00 | 1" | 1" 1/4 | .STEP |
| AXH01 B6B8 00 | 1" | 1" 1/2 | .STEP |
| AXH01 B7B8 00 | 1" 1/4 | 1" 1/2 | .STEP |
| AXH01 B6B9 00 | 1" | 2" | .STEP |
| AXH01 B7B9 00 | 1" 1/4 | 2" | .STEP |
| AXH01 B8B9 00 | 1" 1/2 | 2" | .STEP |
